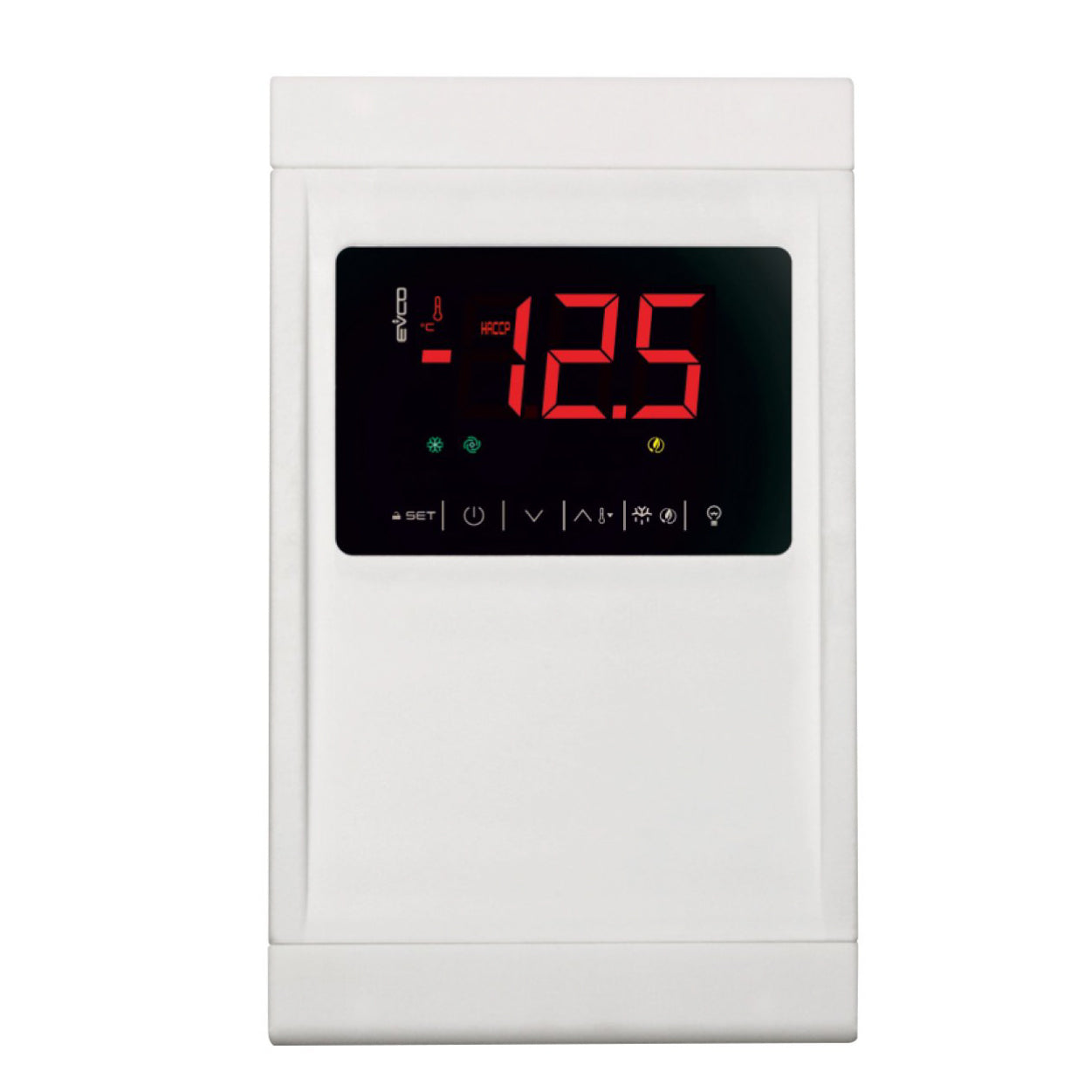

EVCO - Electric panel EVLJ224N7 (EVBOX Light J200)
EVCO - Electric panel EVLJ224N7 (EVBOX Light J200)
Couldn't load pickup availability
Control solutions for cold rooms with on-board condensing unit
DESCRIPTION :
EVBOX Light J200 is a range of front-of-cell electrical panels for the management of single-phase cold rooms both with on-board condensing unit and remote.
The EVLJ224N7 is equipped with 4 relay outputs and can flexibly and energy-saving regulate the most varied machine configurations found on the market. The device ensures reinforced insulation between each digital output connector and the remaining parts of the device.
The user interface has large LED displays and capacitive keys. The panel is designed in each of its components to ensure IP65 protection.
Interaction with the controlled units, even with start/stop of the work cycles, is possible remotely from the EPoCA® cloud platform via Wi-Fi or Ethernet connectivity.
TECHNICAL DETAILS :
| Dimensions |
150.0 x 245.0 x 88.6mm
|
| Mounting method |
Installation on the cold room, with fixing screws (not supplied)
|
|
Diet
|
230VAC |

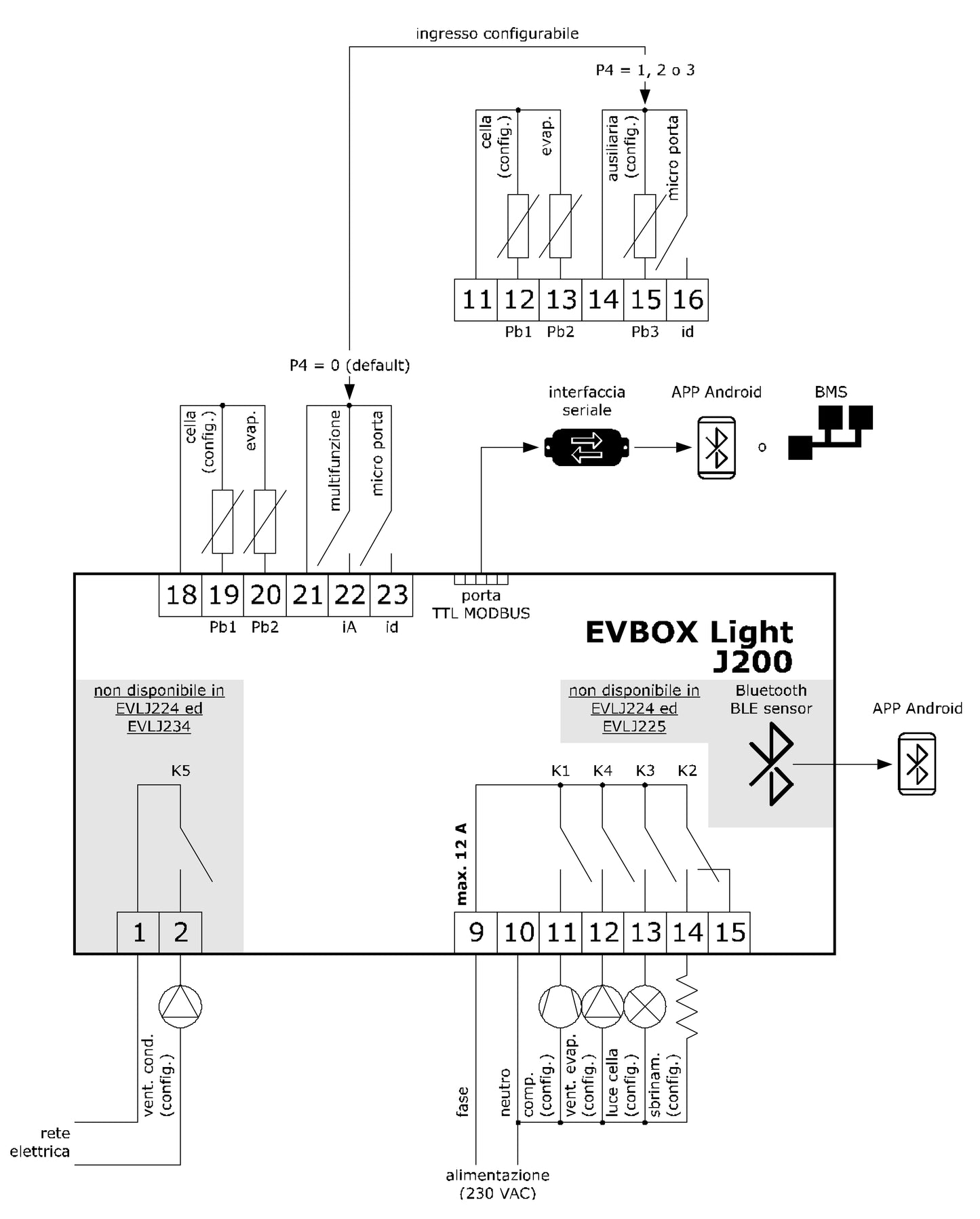

| Connections | Fixed screw terminal blocks for conductors up to 2.5 mm 2 |
| Analog inputs |
2 for PTC or NTC probes (cabinet probe and evaporator probe).
|
| digital inputs |
1 clean contact (door switch) [5 VDC, 1.5mA]
|
| Other entrances |
1 input configurable for analog input (auxiliary probe) or for digital input (multifunction input)
|
| Digital outputs |
4 solid relays (K*n*)
|
| Relay K1 |
16 A res. 250VAC
|
| Relay K2 | 8 A res. 250VAC |
| Relay K3 | 8 A res. 250VAC |
| Relay K4 | 5 A res. 250VAC |
| Other characteristics | TTL MODBUS port, alarm buzzer, overcooling function, energy saving function , adaptive defrost management, Operation for high/low percentage of relative humidity, clock (EVIF23TSX module) |
| Connectivity |
|
EVBOX Light J200 - Link to PDF in ITALIAN
EVBOX Light J200 - Link to PDF in ENGLISH
