EVCO

EVCO - EVCLC229N9E temperature/humidity controller (Vcolor 229 L)

EVCO - EVCLC229N9E temperature/humidity controller (Vcolor 229 L)

Regular price €786,50
Regular price Sale price €786,50
Sale Sold out
Tax included. Shipping calculated at checkout.

Electronic controller with 7" TFT graphic display and PWM output - for cabinets, tables and temperature and humidity cells

DESCRIPTION :

The Vcolor 229 M/L controllers are the EVCO solution suitable for the complete management of LT or TN refrigerated cabinets (Low temperature or Normal temperature) and for temperature/humidity cells.

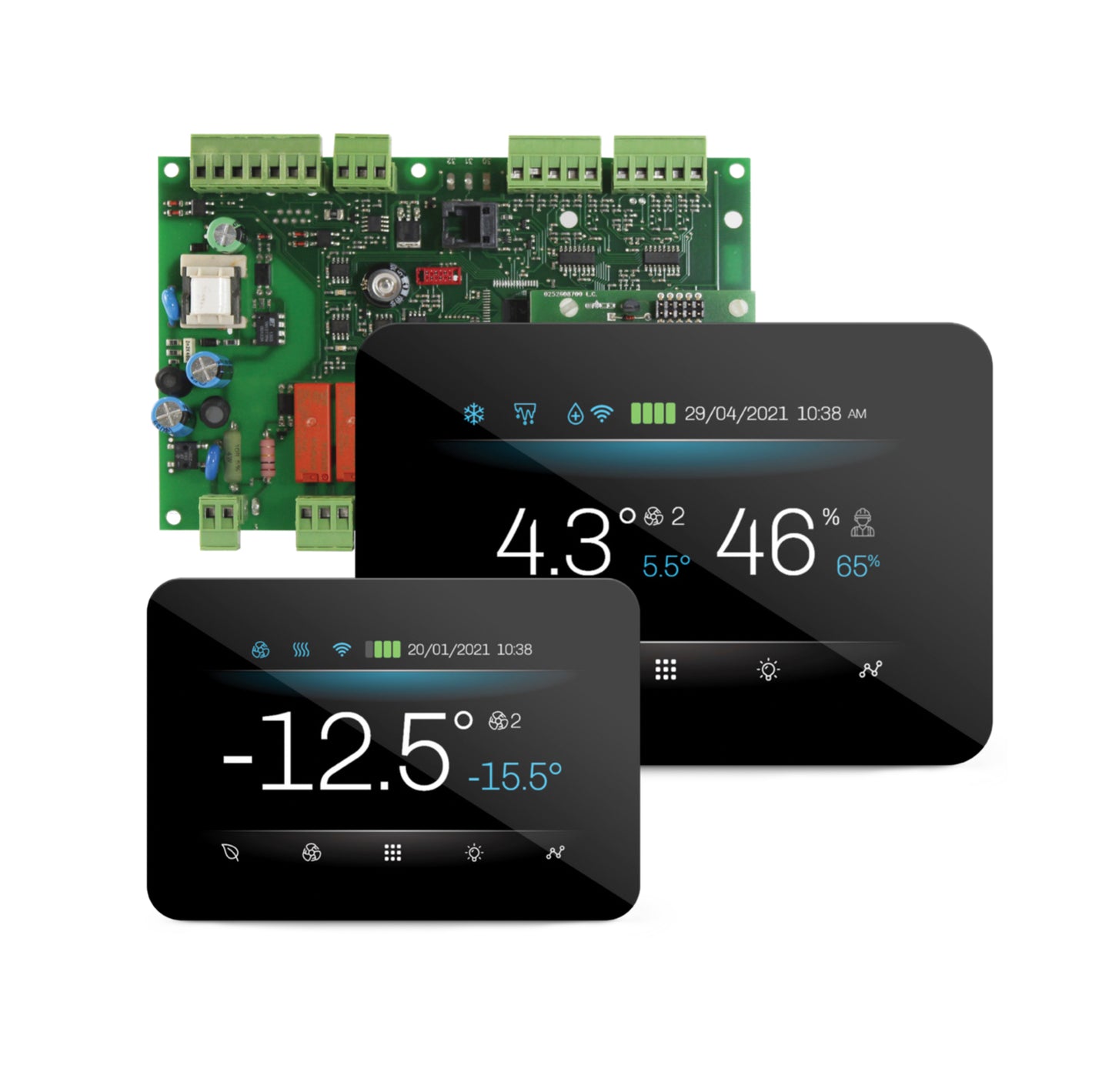

The Vcolor 229/249 M/L controllers consist of:

  • Power base card;
  • Display user interface.

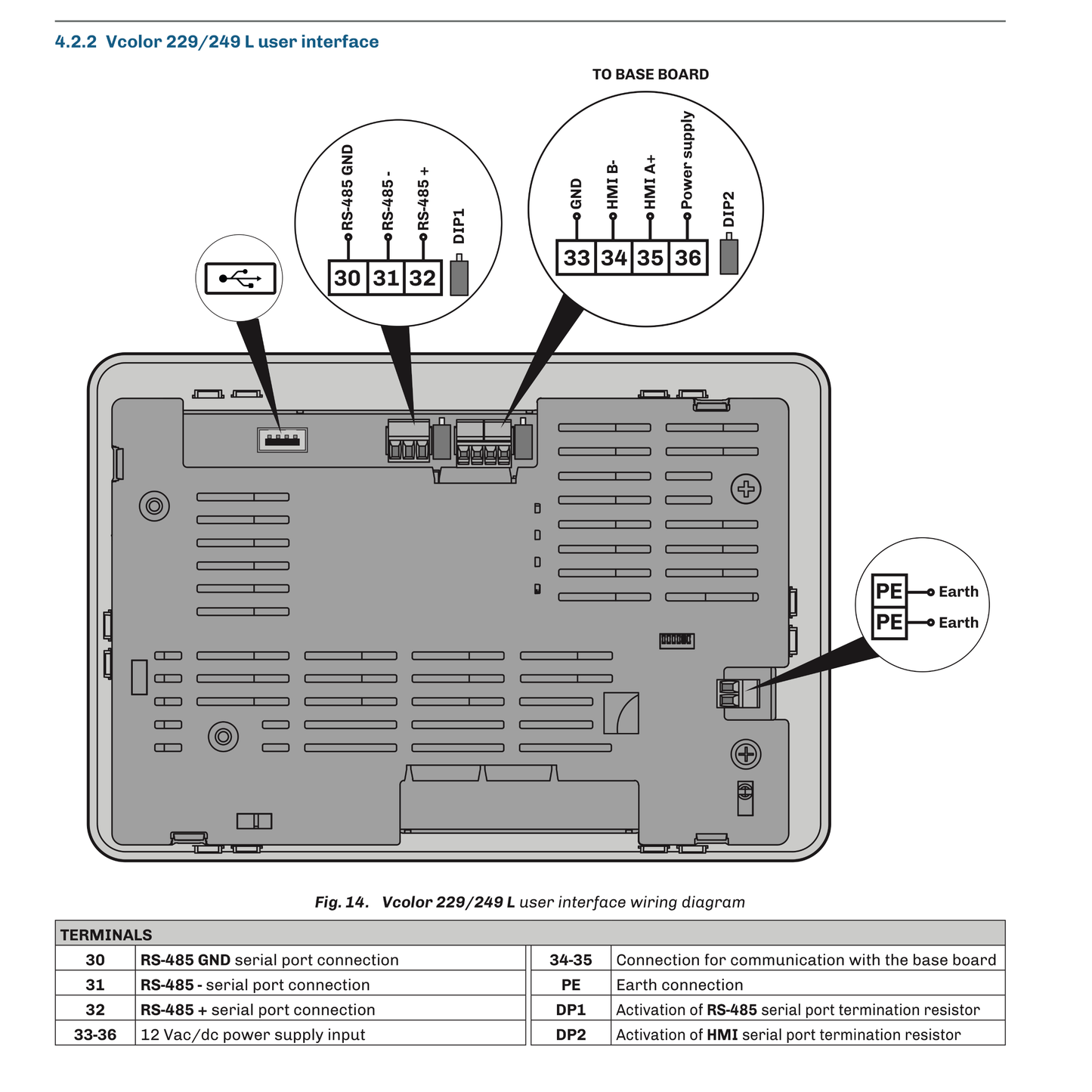

The user interface consists of a 7'' TFT graphic display, with capacitive touch-screen technology, in colour, with horizontal orientation.

Depending on the configuration of the machine, it is also possible to integrate humidity management using standard 4...20 mA current transducers or, alternatively, a dedicated EVCO temperature+humidity probe (EVHTP520, EVHP523).

The innovative programmable platform of Vcolor 229/249 M/L allows the customer to manage in total autonomy:

  • Graphic customization of the controller;
  • Food menu management (matching high quality photos);
  • The addition of additional languages ​​beyond those made available by EVCO.

Interaction with the controlled units, even with start/stop of the work cycles, is possible remotely from the EPoCA® cloud platform via Wi-Fi or Ethernet connectivity

TECHNICAL DETAILS :

Mounting method and dimensions
  • Wall (193 x 132 x 47mm)
  • Back panel (216 x 156 x 50mm)
Diet
  • User interface: 12 Vac/dc ±10%, 50/60 Hz (from power supply)

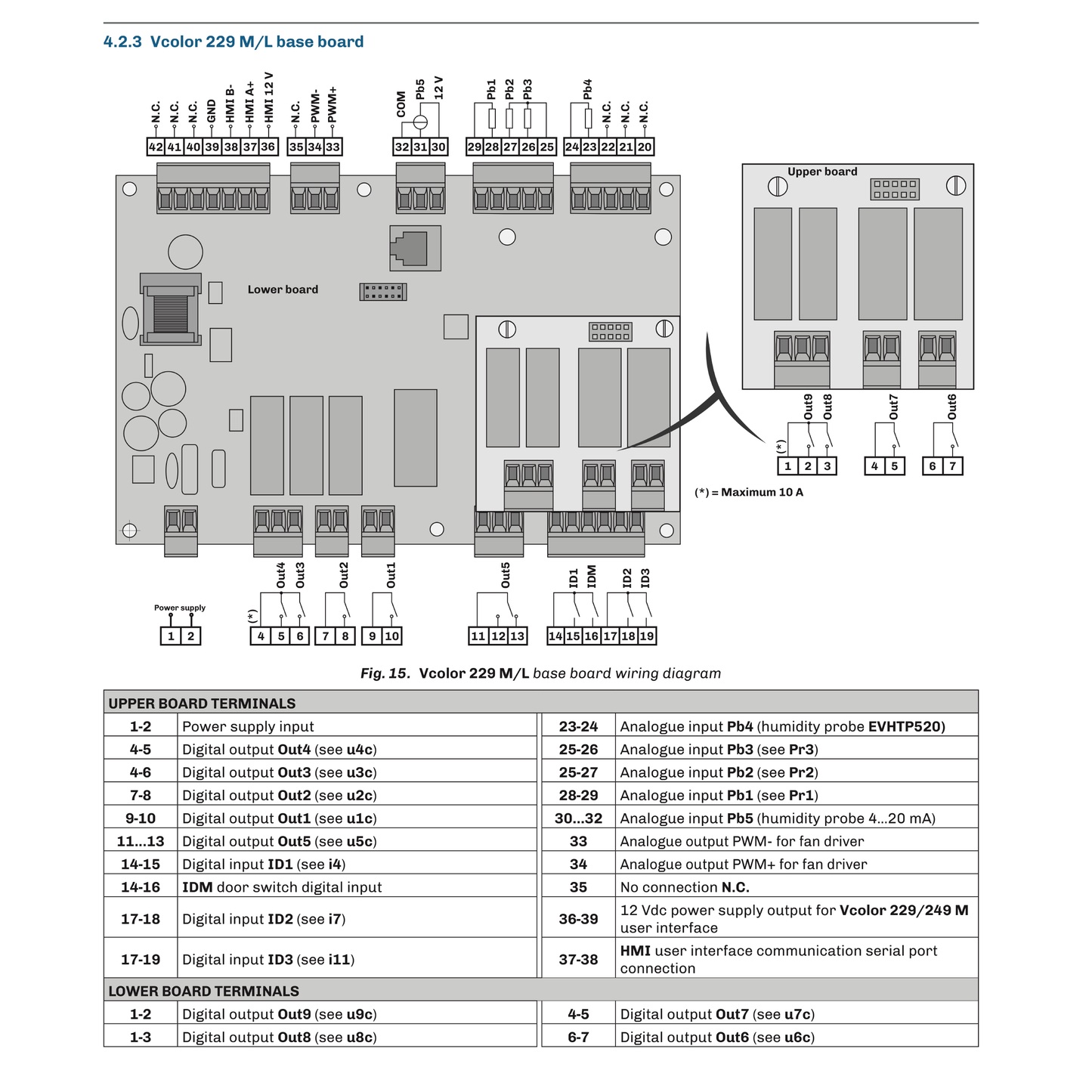

  • Base board: 115...230 Vac, ±10%, 50/60 Hz
Connections Fixed screw terminal blocks
Analog inputs
5 analog inputs, of which:
  • 3 analog inputs for temperature (PTC/NTC/Pt1000);
  • 1 analogue input for EVHTP520 humidity probe ;
  • 1 analogue input for 4...20 mA humidity probe;
digital inputs
4 configurable voltage-free digital inputs (door switch, compressor thermal protection, minimum and maximum pressure switch..)
Digital outputs
9 solid relays (Out*n*) configurable (on request, digital output expansion available for further 4 relay outputs, sealed or unsealed)
Out1 - Compressor 1
16A res. 250VAC
Out2 - Light 8A res. 250VAC
Out3 - Condenser fans 1 8A res. 250VAC
Out4 - Evaporator fans (Maximum speed) 8A res. 250VAC
Out5 - Alarm 8A res. 250VAC
Out6 - Defrost 16A res. 250VAC
Out7 - Heating resistors 16A res. 250VAC
Out8 - door resistors 8A res. 250VAC
Out9 - Sanitization 8A res. 250VAC
Other characteristics 1 PWM output ( for evaporator fan speed regulator) , RS-485 MODBUS , USB port, HACCP function , clock, alarm buzzer, "food to be preserved" function.
Connectivity
  • Wi-Fi EPoCA/MODBUS TCP (optional via EVlinking Wi-Fi module with power supply from controller)
  • Bluetooth - Low Energy for EVconnect app (optional via EVlinking BLE module)

Manual:
Vcolor 229 L - Link to PDF in ITALIAN
Vcolor 229 L - Link to PDF in ENGLISH
