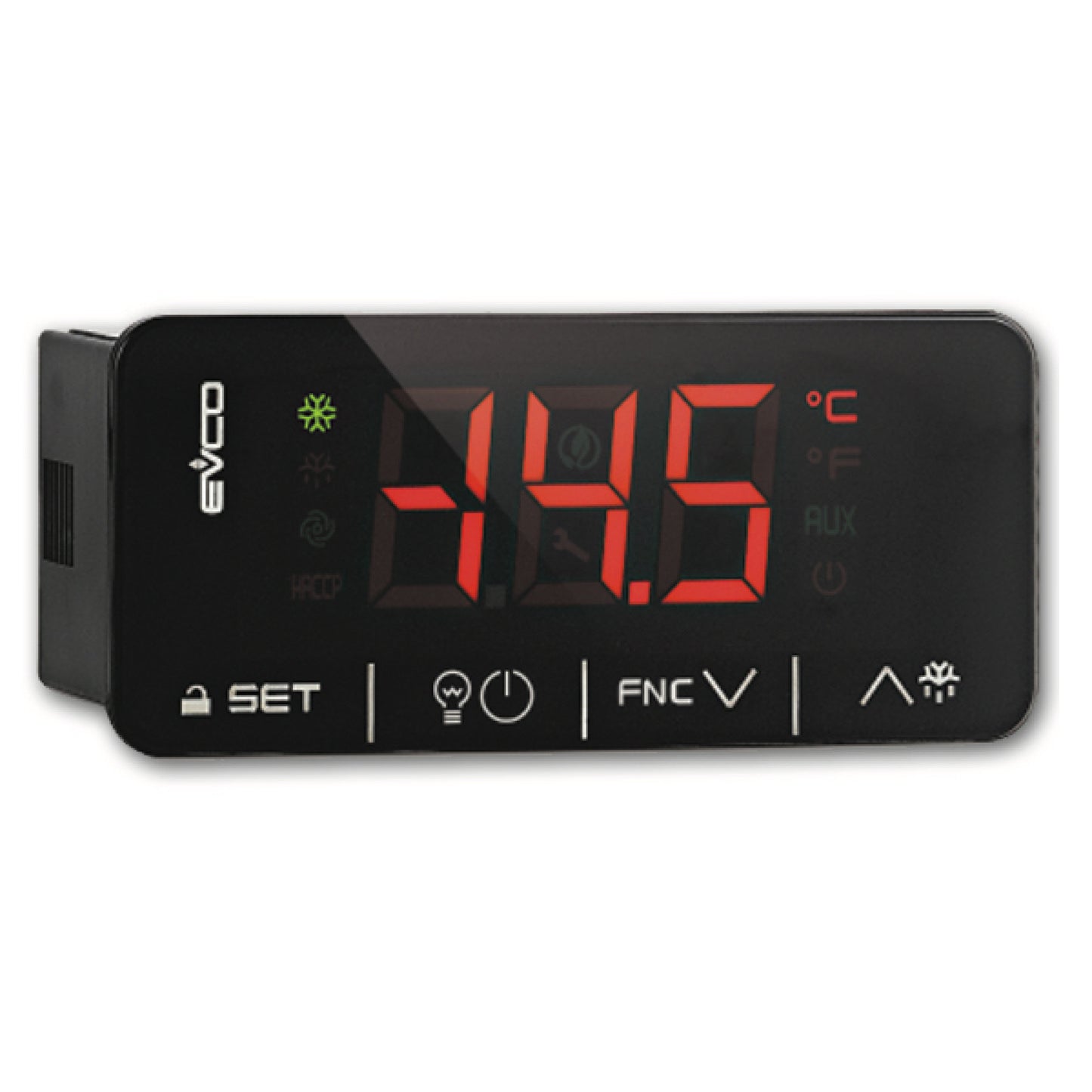

EVCO - EV3294N9 refrigeration controller

EVCO - EV3294N9 refrigeration controller

€87,50
€87,50
Sale Sold out
Tax included. Shipping calculated at checkout.

Controller for refrigerated cabinets, tables and islands, with energy saving strategies and compatible with the EVconnect APP

DESCRIPTION :

EV3294N9 belongs to the EVCO EV3 200 range of controllers, designed for optimized and energy efficient management of normal, low, static or ventilated temperature refrigerated units.

With EV3294, the advanced functions relating to HACCP data traceability and interaction with the controlled units are possible remotely from the EPoCA® cloud platform via Wi-Fi or Ethernet connectivity, while locally it is possible to interact from a mobile device with the EVconnect app ® based on Bluetooth Low Energy connectivity.

TECHNICAL DETAILS :

Dimensions
75x33x59mm
Mounting method Panel mounted, with snap brackets (supplied)
Diet
230VAC (+10% -15%), 50/60Hz (±3Hz)

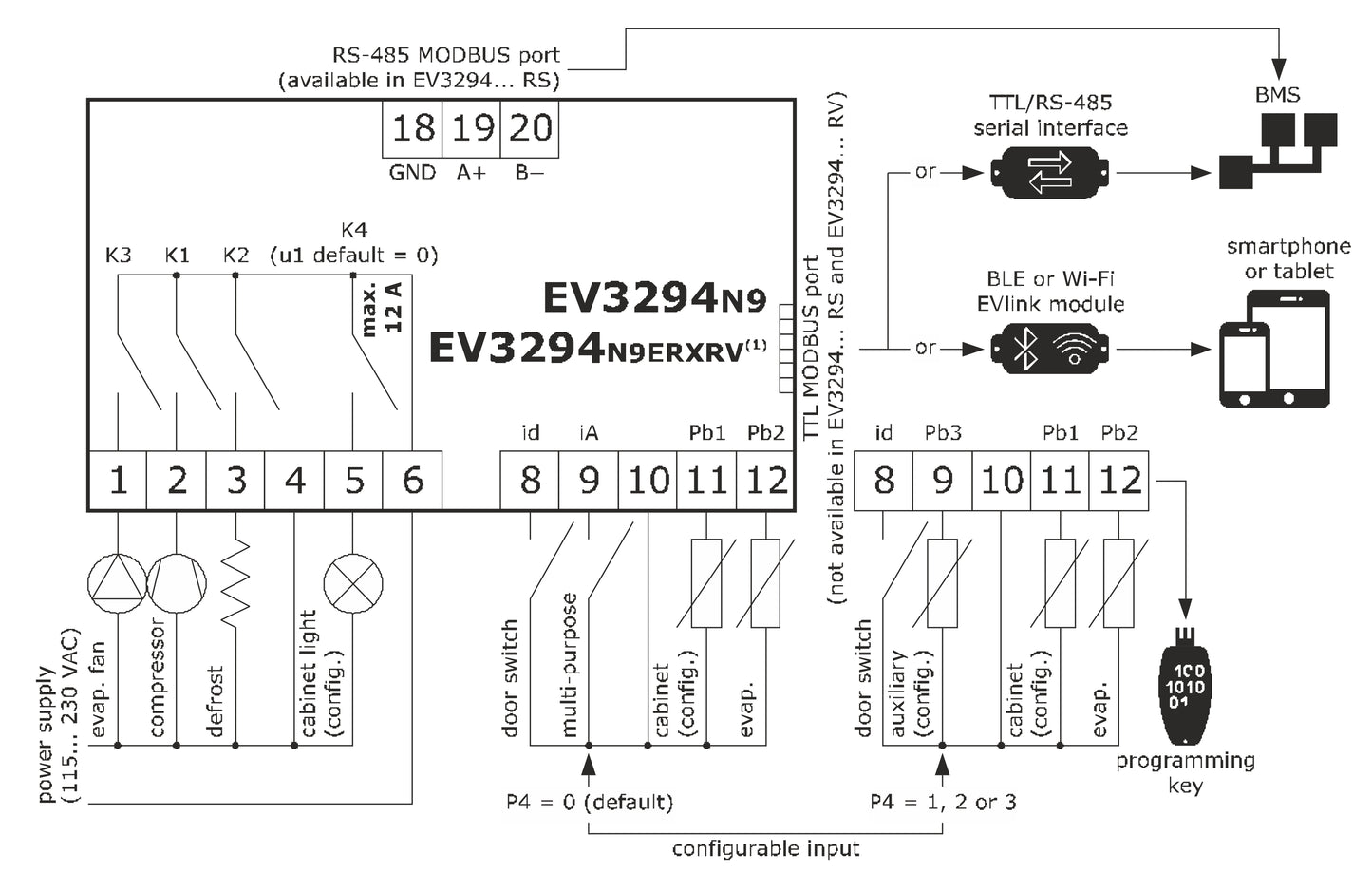

Connections Fixed screw terminal blocks
Analog inputs
2 for PTC or NTC probes (cabinet probe and auxiliary probe)
Configurable inputs (analog or digital) Auxiliary probe (PTC/NTC) or door switch/multifunction
Digital outputs
4 solid relays
Compressor relay (K1)
16A res. 250VAC
Defrost relay (K2) 8A res. 250VAC
Evaporator fan relay (K3) 5A res. 250VAC
Auxiliary relay (K4) 5A res. 250VAC
Other characteristics TTL MODBUS port, alarm buzzer, overcooling function, energy saving function, adaptive defrost management, cold/heat operation, multideck function
Connectivity
  • Wi-Fi EPoCA/MODBUS TCP (optional via EVlinking Wi-Fi module with power supply from controller)
  • Bluetooth - Low Energy for EVconnect app (optional via EVlinking BLE module)

Instruction sheet:
EV3123 - Link to PDF in ITALIAN
EV3123 - Link to PDF in ENGLISH
