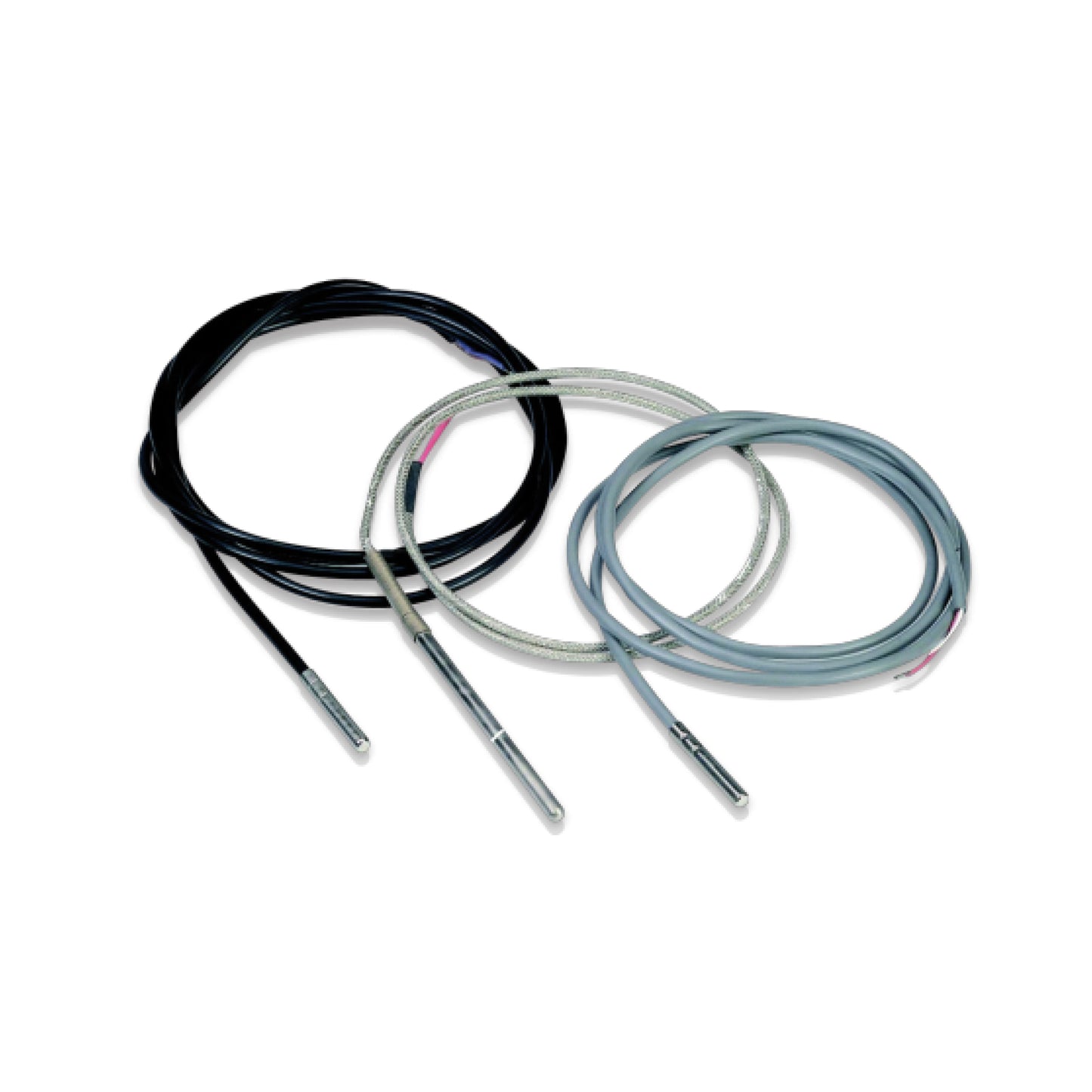

EVCO - EVTP temperature PROBES

EVTP is a range of temperature probes for industrial environments.
They use the most common temperature sensors (PTC, NTC, Pt 100, type J and type K thermocouples), are available in different executions, ensure a wide measuring range and good precision.
Some probes guarantee an IP68 degree of protection; others ensure double insulation.

EVTPN615F200 - SND NTC TERM 1,5M 6x15 COSTFL
Sensor: PTC
Cable type: 2-wire thermoplastic
Cable length: 1.5m
Bulb dimensions: 6x15 mm co-moulded
Measuring range: -50 to 120 °C

EVTPN630F200 - SND NTC TERM 3,0M 6x15 COSTFL
Sensor: PTC
Cable type: 2-wire thermoplastic
Cable length: 3m
Bulb dimensions: 6x15 mm co-moulded
Measuring range: -40 to 110 °C

EVTPN815S200 - SND NTC SIL2 1,5M 6x40 STEEL 67
Sensor: NTC
Cable type: 2-wire silicone
Cable length: 1.5m
Bulb dimensions: 6x40 mm resin
Measuring range: -50 to 120 °C

EVTPN830S200 - SND NTC SIL2 3,0M 6x40 STEEL 67
Sensor: PTC
Cable type: 2-wire silicone
Cable length: 3m
Bulb dimensions: 6x40 mm resin
Measuring range: -50 to 120 °C
